Sliding door kit for wooden and metal doors weighing up to 55kg and 90kg
Features a one piece ball cage design to provide a smooth running system
Categories: Sliding and Folding Door, Sliding Door
Produk Berkualitas
jaminan produk terbaik
Konsultasi Gratis
dengan tim ahli kami
Pengiriman Cepat
dan tepat waktu
Garansi 5 Tahun
untuk pelayanan terbaik
Dipercaya Proyek Besar
seperti Kempinski dan lainnya
Solusi Custom
sesuai kebutuhan Anda
Product Details
Product | Order Code | No. of Doors | Track Length | Door Width Range | Door Thickness Range | Max. Door Weight | Door Material | Application |
---|---|---|---|---|---|---|---|---|
Marathon 55 | J2 | 1 | 1219mm | 400mm - 750mm | 32-50mm | 55kg | Wood | Interior |
Marathon 55 | J3 | 1 | 1473mm | 750mm - 900mm | 32-50mm | 55kg | Wood | Interior |
Marathon 55 | J4 | 1 | 1702mm | 900mm - 1050mm | 32-50mm | 55kg | Wood | Interior |
Marathon 55 | J5 | 1 | 1981mm | 1050mm - 1200mm | 32-50mm | 55kg | Wood | Interior |
Marathon 55 | J6 | 1 | 2438mm | 1200mm - 1500mm | 32-50mm | 55kg | Wood | Interior |
Marathon 90 | S2 | 1 | 1219mm | 400mm - 750mm | 32-50mm | 90kg | Wood | Interior |
Marathon 90 | S3 | 1 | 1473mm | 750mm - 900mm | 32-50mm | 90kg | Wood | Interior |
Marathon 90 | S4 | 1 | 1702mm | 900mm - 1050mm | 32-50mm | 90kg | Wood | Interior |
Marathon 90 | S5 | 1 | 1981mm | 1050mm - 1200mm | 32-50mm | 90kg | Wood | Interior |
Marathon 90 | S6 | 1 | 2438mm | 1200mm - 1500mm | 32-50mm | 90kg | Wood | Interior |
Marathon 90 | S7 | 1 | 3048mm | 1500mm - 1800mm | 32-50mm | 90kg | Wood | Interior |
Marathon 90 | S8 | 1 | 3226mm | 1800mm - 2000mm | 32-50mm | 90kg | Wood | Interior |
Marathon 90 | S9 | 1 | 4420mm | 2000mm - 2500mm | 32-50mm | 90kg | Wood | Interior |
Documents
Document | Name | File size | |
---|---|---|---|
![]() |
Marathon 55 Fitting Instructions |
1.12 MB |
Download |
![]() |
Marathon 90 Fitting Instructions |
868.98 KB |
Download |
![]() |
Marathon Brochure Page |
205.91 KB |
Download |
![]() |
Marathon Self Closing Door Kit Fitting Instructions |
275.43 KB |
Download |
![]() |
Marathon 55 Quality Certificate |
83.52 KB |
Download |
![]() |
Marathon 90 Quality Certificate |
83.84 KB |
Download |
Description
- For biparting doors, two kits can be purchased
- Easy and rapid installation
- Can be combined with Marathon Fire rated to create an FD30 fire door assembly (S3, S4, S5 and S6 kits only)
- Optional self close kit available
Marathon sliding door kit has been designed with a one piece ball cage track to allow for an extremely reliable and smooth running system.
Versatile System
Catering for doors up to 55kg and 90kg, Marathon is available in 13 different kits to support doors between 400 and 2500mm wide.
Please note that the track is unable to be cut down on this system. For bi-parting doors – two kits should be purchased.
Optional Self Close System
A self-closing door kit can also be added to further complement the system – please see spares and accessories below.
Marathon 90 kits (S3, S4, S5 and S6) can also be combined with our Marathon Fire Rated to create a 30 minute (FD30) fire door assembly.

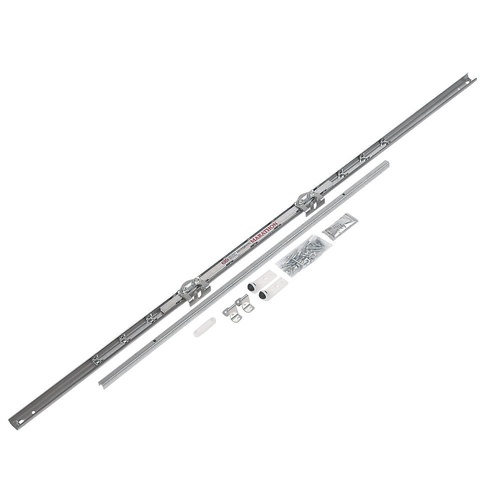

Your Marathon Kit includes:
- Aluminium Track (x1)
- Bottom Channel (x1)
- Top Assembly (x1)
- Nylon Top Plates (x2)
- Wall Mounted Stops (x2)
- Nylon Floor Guide (x1)
Additional information
Brand |
Henderson |
---|---|
Type of Door |
Sliding Door |
Door Thickness |
32-50mm |
Door Weight |
55kg – 90kg |
