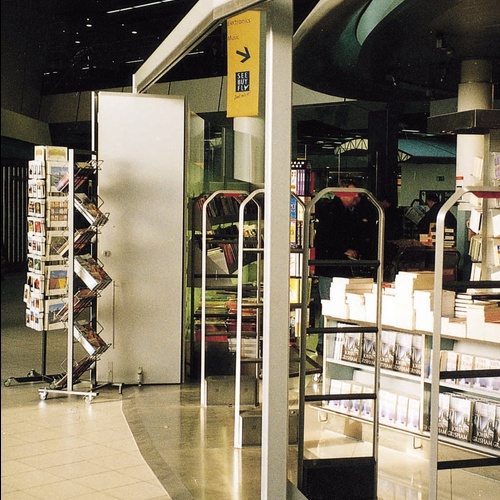

Pacer Centrefold

for top hung, centrally folding partition doors weighing up to 35kg and 75kg

  • Leaves are hung centrally and can fold to one or both sides
  • Any access door should be hinged separately to the jamb
  • Ideal for residential or commercial doors

Top-hung Pacer gear and fittings for centre folding timber partition doors. Leaves are hung centrally and can fold to one or both sides. For applications hinged to the jamb, 3.5, 5.5 or 7.5 leaves can be used with the half-leaf hinged to the jamb. For best operation of floating units, 5, 7 or 9 leaves should be used. Any access doors should be hinged separately to the jamb.

Category: Tag:

Description

Max. Door WeightDoor Thickness RangeMax. Door WidthMax. Door HeightDoor MaterialApplication
35kg (61B Hanger)35 – 44mm900mm2700mmWoodInterior
75kg (61B/4 Hanger)35 – 44mm900mm2700mmWoodInterior
NameDocument
Pacer Centrefold DatasheetDownload
Pacer Fascia Fitting InstructionsDownload
